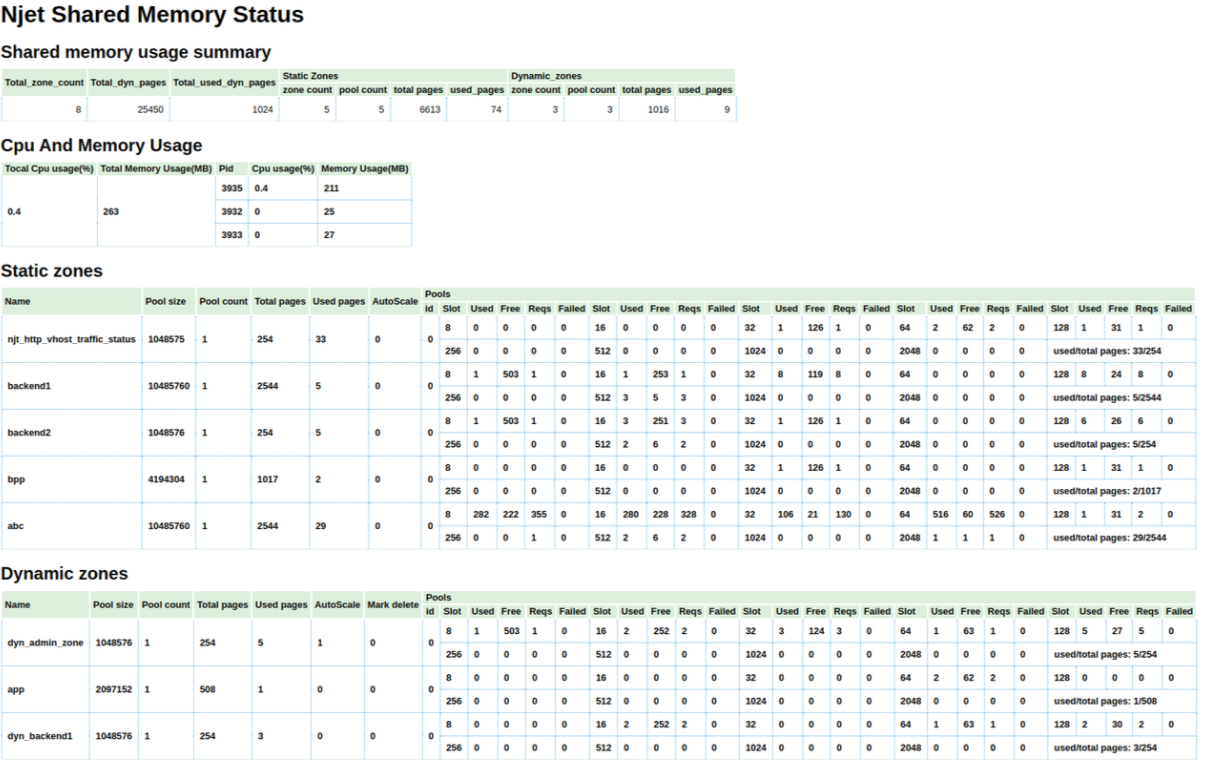

共享内存统计

helper broker modules/njt_helper_broker_module.so conf/mqtt.conf;
helper ctrl modules/njt_helper_ctrl_module.so conf/ctrl.conf;

load_module modules/njt_agent_dynlog_module.so;
load_module modules/njt_http_dyn_server_module.so;  #server验证
load_module modules/njt_http_location_module.so;  #location验证

load_module modules/njt_http_dyn_proxy_pass_module.so; #动态proxy_pass模块
load_module  modules/njt_http_dyn_upstream_module.so;   #动态upstream模块

user  root;
worker_processes auto;

cluster_name helper;
node_name node1;

error_log  logs/error.log info;
pid        logs/njet.pid;
events {
    worker_connections  1024;
}

shared_slab_pool_size  100m;  #动态共享内存管理指令，配置大小要大于需要配置的upstream共享内存大小

shm_status  on; #默认为on，可以不配

http {
    dyn_kv_conf conf/iot-work.conf;
    include       mime.types;
    default_type  application/octet-stream;

    access_log  logs/access.log;

    upstream backend1 {

         zone backend1 1m;

         server 127.0.0.1:5678;

      }

        server {
                listen 5555;
                server_name localhost;

                location / {
                        keepalive_timeout 750s;
                        return 200 "5555 ok";
                }
                 location /test {
                  proxy_http_version 1.1;
                  proxy_set_header Connection "";
                  proxy_pass http://backend1;
                }
                location /mirror {
                   internal;
                   set $upstream dyn_backend1;
                   proxy_pass http://$upstream;
                }
        }

        server {

               listen 5678;

               location / {

                    return 200 "5678 ok";
                }


        }

}

load_module modules/njt_http_sendmsg_module.so;
load_module modules/njt_ctrl_config_api_module.so;
load_module modules/njt_http_upstream_api_module.so;  #upstream api模块
load_module modules/njt_http_location_api_module.so;
load_module modules/njt_doc_module.so;
load_module modules/njt_http_dyn_server_api_module.so;
load_module  modules/njt_http_dyn_upstream_module.so;  #动态upstream模块
load_module modules/njt_http_dyn_upstream_api_module.so;  #动态upstream模块
load_module modules/njt_http_shm_status_module.so;   #共享内存统计模块

events {
    worker_connections  1024;
}
error_log         logs/error_ctrl.log info;

http {
    dyn_sendmsg_conf  conf/iot-ctrl.conf;
    dyn_kv_conf       conf/ctrl_kv.conf;
    access_log        logs/access_ctrl.log combined;

    include           mime.types;

    server {
        listen       8081;
        keepalive_timeout 0;

        location /api {
             dyn_module_api;

        }
         location /doc {
             doc_api;
         }

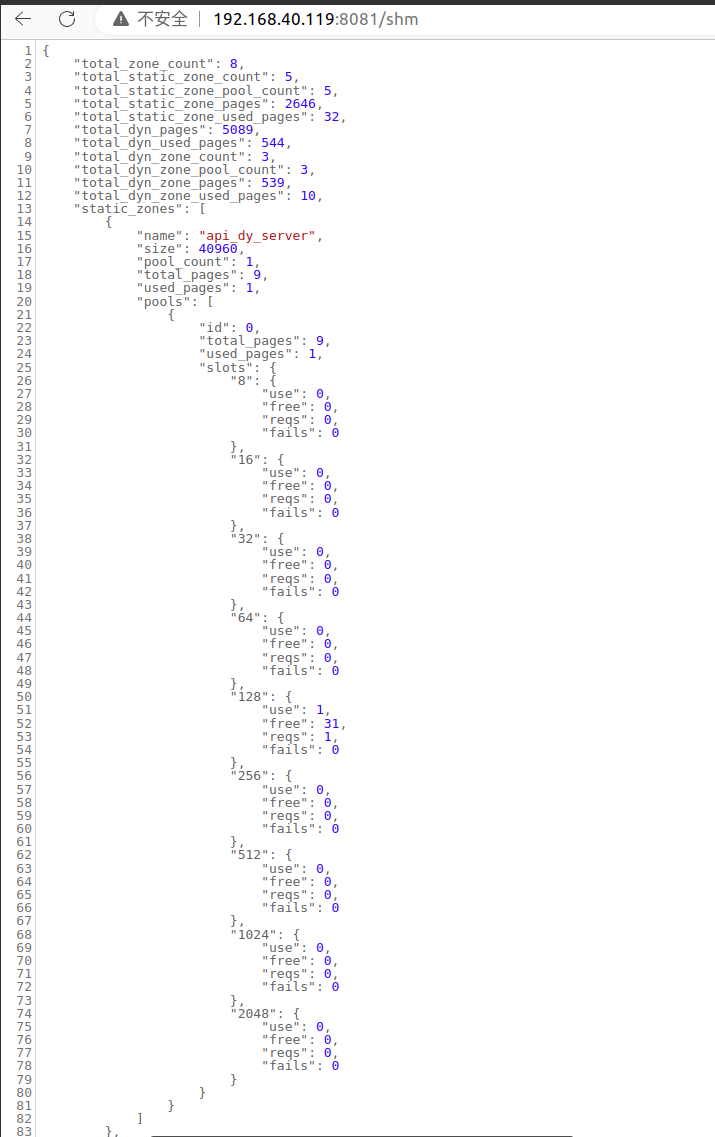

         location /shm {
            shm_status_display;
        }

  }

}


cluster_name helper;
node_name node1;
