api 网关功能

1.功能描述

支持用户角色维护，OpenAPI导入，授权关系维护，应用部署，后端服务注册，主动健康检查配置，登录及授权校验

用户维护API

需要提供对用户，组及角色及相互关系维护的API

一个用户可以对应多个用户组

角色将赋予用户组

登录API

API设计时，需要考虑不同的后端登录服务类型

需要提供一个内置的登录服务，内置的登录服务提供如下登录方式：a.)持久化存储中保存的用户名密码做登录校验 b.)通过Email 发送校验码，用户通过校验码登录。

客户端调用登录API后，将获得一个 token, token 只是一个uuid, 其它的信息（expire_time, role, …) 保存到持久化存储中。

后续对其它API的调用需要在Header 中设置该token。

授权API

需要提供 location 下api与角色间授权关系维护的API

HTTP 不同的method 需要能够设置不同的访问权限

访问校验

对应用提供的API 访问，API网关需要校验token 有效性及授权关系。

Token 无效或过期返回 401错误。

对应角色无访问权限返回403 错误。

校验成功则由应用进行后续处理。

应用部署

文件上传使用已有的 /api/v1/upload 接口，做为应用服务器，提供应用部署接口，需要能够将上传的压缩包解压，部署接口中需要调用动态location , 入口文件可以使用预先约定的方式

API Gateway 管理员agw_admin 的默认密码，rpm/deb 安装时，将生成默认密码，使用 sbin/agw_passwd 工具进行密码设置
API Gateway 不允许删除默认的用户

2.依赖模块

njet.conf:

load_module modules/njt_http_token_sync_module.so;

njet_ctrl.conf:

load_module modules/njt_http_lua_module.so;

3.配置样例

njet.conf

helper broker modules/njt_helper_broker_module.so conf/mqtt.conf;
helper ctrl modules/njt_helper_ctrl_module.so conf/njet_ctrl.conf;
helper rsync modules/njt_helper_rsync_module.so conf/rsync.conf;
load_module  modules/njt_http_dyn_map_module.so;
load_module modules/njt_agent_dynlog_module.so;
load_module modules/njt_http_location_module.so;
load_module modules/njt_dyn_ssl_module.so;
load_module modules/njt_http_vtsc_module.so;
load_module modules/njt_http_dyn_limit_module.so;
load_module modules/njt_http_dyn_crl_module.so;
load_module modules/njt_http_lua_module.so;
load_module modules/njt_http_dyn_lua_module.so;
load_module modules/njt_http_token_sync_module.so;  ## 依赖该模块

cluster_name helper;
node_name node156;

worker_processes 1;
#user root;

error_log logs/error.log info;
pid logs/njet.pid;

events {
        worker_connections 1024;
}
http {
    resolver 8.8.8.8;
    include mime.types;
    access_log off;
    vhost_traffic_status_zone;
    lua_package_path "$prefix/lualib/lib/?.lua;$prefix/modules/?.lua;/usr/local/njet/modules/?.lua;$prefix/apps/?.lua;;";
    lua_package_cpath "$prefix/lualib/clib/?.so;;";
    token_sync zone=token:4M sync_time=5s clean_time=10s;


    lua_shared_dict configuration_data 20M;
    init_by_lua_block {
        local api_gateway=require("api_gateway")
        api_gateway.init_master()
    }
    init_worker_by_lua_block {
        local api_gateway=require("api_gateway")
        api_gateway.init_worker()
    }

    upstream upstream_balancer {
        server 0.0.0.1;

        balancer_by_lua_block {
            balancer.balance()
        }

        keepalive 320;
        keepalive_time 1h;
        keepalive_timeout  120s;
        keepalive_requests 10000;
    }

    server {
        listen       8080;
         server_name frontserver8080;
        location / {
           root html;
        }
        location /api_gateway {
        #   content_by_lua_file modules/api_gateway/auth.lua;
         content_by_lua_block {
                local api_gateway=require("api_gateway")
                api_gateway.auth()
           }
        }
     location /token_get {
          content_by_lua_block {
              local token_lib=require("njt.token")
              local args, err = njt.req.get_uri_args()
              local key = args["key"]
              local rc,msg = token_lib.token_get(key)
              if rc == 0 then
                 njt.say("old value is: "..msg)
              else
                 njt.say("there is no such key in kv")
              end
          }
       }
     }
     server {
                listen 8001;
                server_name backserver8001;

                location / {

                          return 200 "80018001";
                }
        }
        server {
                listen 8002;
                server_name backserver8002;

                location / {

                          return 200 "80028002";
                }
        }

     server {
                listen 8003;
                server_name backserver8003;

                location / {

                          return 200 "80038003";
                }
        }



}
 stream {
        server {
                listen 238.255.253.251:5557 udp;
                gossip zone=test:1m heartbeat_timeout=100ms nodeclean_timeout=1s local_ip=192.168.40.156 sync_port=8873 ctrl_port=8081 ;
        }
}

njet_ctrl.conf:

load_module modules/njt_http_sendmsg_module.so;
#load_module modules/njt_helper_broker_module;
load_module modules/njt_ctrl_config_api_module.so;
load_module modules/njt_helper_health_check_module.so;
load_module modules/njt_http_upstream_api_module.so;
load_module modules/njt_http_location_api_module.so;
load_module modules/njt_doc_module.so;
load_module modules/njt_http_vtsd_module.so;
load_module modules/njt_http_upload_module.so;
load_module modules/njt_http_crl_api_module.so;
load_module modules/njt_http_lua_module.so;
cluster_name helper;
node_name node1;
error_log logs/error_ctrl.log info;
events {
        worker_connections 1024;
}

http {
        dyn_sendmsg_conf conf/iot-ctrl.conf;
        config_req_pool_size 1000;
        access_log logs/access_ctrl.log combined;
        include mime.types;
        resolver 8.8.8.8;
        lua_package_path "$prefix/lualib/lib/?.lua;$prefix/modules/?.lua;/usr/local/njet/modules/?.lua;;";
        lua_package_cpath "$prefix/lualib/clib/?.so;;";

        init_by_lua_block {
       local _=require("lor.index")
       local _=require("lsqlite3complete")
       }

        server {
                listen 8081;
            client_max_body_size 10G;
            location /api {
               dyn_module_api;
         }

          location /doc {
               doc_api;
         }
           location /api_gateway {
            access_by_lua_block {
                local ac=require("api_gateway.access.control")
                local access=ac.new("/api_gateway")
                access:check()
             }
           content_by_lua_block {
              local api_gateway=require("api_gateway")
              api_gateway.main()
           }
        }

          location / {
                 root /usr/local/njet/html;
                 index upload.html;
             }
                location /metrics {
                        vhost_traffic_status_display;
                        vhost_traffic_status_display_format html;



        }

}
}

rsync.conf:

{

    "log_file": "logs/rsync.log",
    "log_level": "debug",
    "watch_dirs": [
        {
            "identifier": "rsync1",
            "prefix": "/home/limin/api_gateway",
            "dir": "/home/limin/api_gateway/apigw_data"
        },
        {
            "identifier": "rsync5",
            "prefix": "/home/limin/api_gateway/",
            "dir": "/home/limin/api_gateway/apps"
        }
    ]

}

ctrl_kv.conf:

topic /gossip/#

4.调用样例

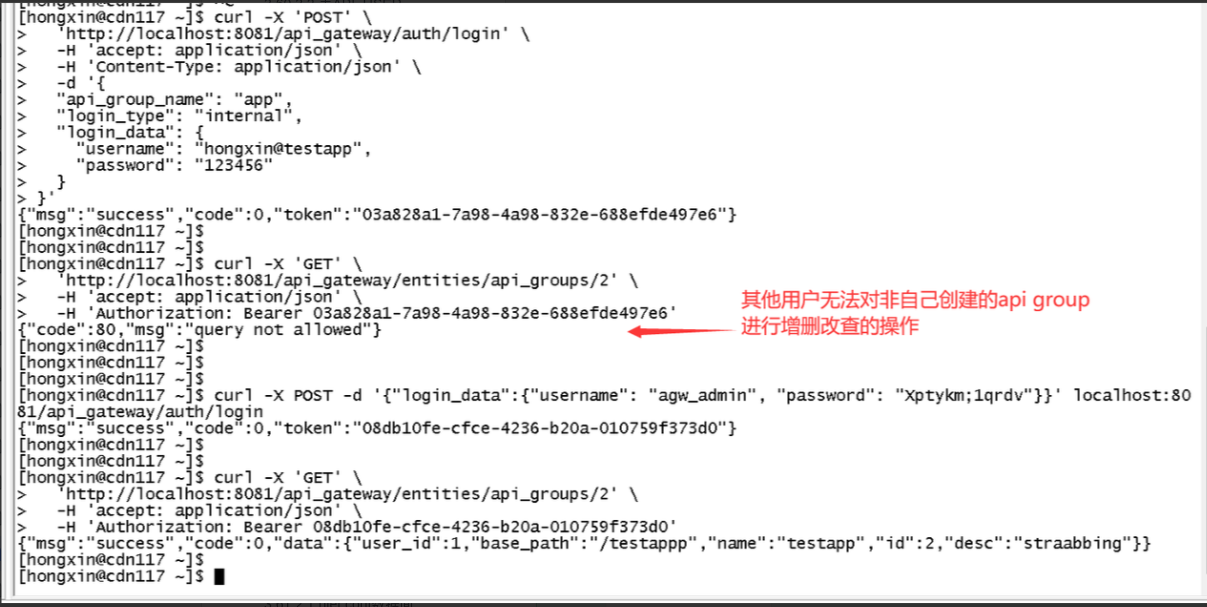

使用 curl 测试各表操作的API 时，关闭了校验，开启校验时，需要使用 login 获取token 后，并在header 中设置 bearer token。

使用命令行工具重置agw_admin初始密码

#初始获取TOKEN,因为还没有设置密码，密码是随机生成的，用户不知道这个密码，所以返回can't get user
[njet@k8s-master158 njet]$ curl -X 'POST'   'http://192.168.40.158:8812/api_gateway/auth/login'   -H 'accept: application/json'   -H 'Content-Type: application/json'   -d '{
  "api_group_name": "app",
  "login_type": "internal",
  "login_data": {
    "username": "agw_admin",
    "password": "Xptykm;1qrdv"
  }
}'
{"code":20,"msg":"can't get user"}


#为超级用户设置密码
[njet@k8s-master158 njet]$ /usr/local/njet/sbin/agw_passwd
Usage: /usr/local/njet/sbin/agw_passwd <database_path> [password]
[njet@k8s-master158 njet]$ sudo /usr/local/njet/sbin/agw_passwd /usr/local/njet/apigw_data/api_gateway.db  123456
Password hash updated successfully for user_id=1, password: 123456


#使用登录的密码获取token
[njet@k8s-master158 njet]$ curl -X 'POST'   'http://192.168.40.158:8812/api_gateway/auth/login'   -H 'accept: application/json'   -H 'Content-Type: application/json'   -d '{
  "api_group_name": "app",
  "login_type": "internal",
  "login_data": {
    "username": "agw_admin",
    "password": "123456"
  }
}'
{"msg":"success","code":0,"token":"4150e7b2-5907-4fbd-8c4c-cdd69f75cd37"}

使用内置登录服务获取 token

curl -X POST -d '{"login_data":{"username": "agw_admin", "password": "123456"}}' localhost:8081/api_gateway/auth/login

{"code":0,"msg":"success","token":"8f61f744-3d86-46c4-a460-b2c7d9a44f9e"}

使用 Email 方式登录

curl -X POST -d '{"email":"hongxincn@139.com"}'  localhost:8081/api_gateway/auth/verification

 curl -X POST -d '{"login_data":{"email": "hongxincn@139.com", "verification_code": "E9zOrH"}}' localhost:8081/api_gateway/auth/login
 {"msg":"success","token":"1e0eedca-96a7-401e-84db-1ab190f0505a","code":0}

  curl -H "Authorization: bearer 1e0eedca-96a7-401e-84db-1ab190f0505a" localhost:8081/api_gateway/identities/users/1
{"msg":"success","data":{"mobile":"","id":1,"email":"13696964249@139.com","name":"aa"},"code":0}

修改email:

 curl -H "Authorization: bearer 83e417a9-1072-4e89-8372-5305498c23df"  -X PUT -d '{ "email":"hongxina@tmlake.com"}' localhost:8081/api_gateway/identities/users/1
{"msg":"success","code":0}


curl -X POST -d '{"email":"hongxina@tmlake.com"}'  localhost:8081/api_gateway/auth/verification{"msg":"success","code":0}

表API_USER

使用POST 方法添加user，user 添加后的id 会返回给调用方

curl  -X POST -d '{"domain":"app1", "name":"firstacc", "email":"firstacc@test.com", "password":"dd"}' localhost:8081/api_gateway/identities/users

{"code":0,"data":{"id":10},"msg":"success"}

使用GET方法查询，支持通过 id 或name 进行查询

 curl localhost:8081/api_gateway/identities/users/10

{"code":0,"msg":"success","data":{"name":"firstacc@app1","email":"firstacc@test.com","mobile":""}}

curl localhost:8081/api_gateway/identities/users/name/firstacc

{"code":0,"msg":"success","data":{"email":"firstacc@test.com","name":"firstacc","mobile":""}}

使用PUT方法进行修改，需要通过id 进行修改。

curl localhost:8081/api_gateway/identities/users/12
{"msg":"success","data":{"email":"firstacc3@test.comd","id":12,"mobile":"","name":"firstacc3d"},"code":0}

curl  -X PUT -d '{"name":"updatedname", "email":"updated@test.comd", "password":"uppass"}' localhost:8081/api_gateway/identities/users/12
{"code":0,"msg":"success"}

curl localhost:8081/api_gateway/identities/users/12
{"data":{"mobile":"","name":"updatedname","email":"updated@test.comd","id":12},"code":0,"msg":"success"}

使用 DELETE 方法进行删除

curl -X DELETE localhost:8081/api_gateway/identities/users/10
{"msg":"success","code":0}

表API_USER_GROUP

使用POST 方法添加group，group 添加后的id 会返回给调用方

 curl  -X POST -d '{"name":"firstacc"}' localhost:8081/api_gateway/identities/groups

{"msg":"success","data":{"id":2},"code":0}

使用GET方法查询，支持通过 id 或name 进行查询

curl localhost:8081/api_gateway/identities/groups/2
{"code":0,"msg":"success","data":{"desc":"","name":"firstacc","id":2}}

curl localhost:8081/api_gateway/identities/groups/name/firstacc
{"code":0,"msg":"success","data":{"desc":"","name":"firstacc","id":2}}

使用PUT方法进行修改，需要通过id 进行修改。

 curl localhost:8081/api_gateway/identities/groups/2
 {"code":0,"data":{"name":"firstacc","desc":"","id":2},"msg":"success"}

 curl  -X PUT -d '{"name":"updatedGroupname", "desc": "updated desc"}' localhost:8081/api_gateway/identities/groups/2
{"code":0,"msg":"success"}

curl localhost:8081/api_gateway/identities/groups/2
{"code":0,"msg":"success","data":{"name":"updatedGroupname","desc":"updated desc","id":2}}

使用 DELETE 方法进行删除

curl -X DELETE localhost:8081/api_gateway/identities/groups/2
{"msg":"success","code":0}

表API_USER_GROUP_REL

使用PUT 更新用户及组的关系，将使用提交的报文覆盖掉现有的配置， PUT 一个 groups 的空数组，对应用户的记录将被删除

curl -X PUT -d '{"groups": [2, 12]}'  localhost:8081/api_gateway/identities/users/2/groups

使用 GET 查询当前的配置，目前返回结果只包含 group id 的列表

 curl localhost:8081/api_gateway/identities/users/2/groups
{"data":{"groups":[2,12]},"code":0,"msg":"success"}

表 API_ROLE

使用POST 方法添加role，role添加后的id 会返回给调用方(

 curl  -X POST -d '{"name":"role_a"}' localhost:8081/api_gateway/identities/roles

{"msg":"success","data":{"id":2},"code":0}

使用GET方法查询，支持通过 id 或name 进行查询

curl localhost:8081/api_gateway/identities/roles/2
{"code":0,"msg":"success","data":{"desc":"","name":"role_a","id":2}}

curl localhost:8081/api_gateway/identities/roles/name/role_a
{"data":{"name":"role_a","desc":"","id":2},"code":0,"msg":"success"}

使用PUT方法进行修改，需要通过id 进行修改。

 curl  -X PUT -d '{"name":"updateRole", "desc": "updated desc"}' localhost:8081/api_gateway/identities/roles/2
{"code":0,"msg":"success"}

使用 DELETE 方法进行删除

curl -X DELETE localhost:8081/api_gateway/identities/roles/2
{"msg":"success","code":0}

表 API_USER_GROUP_ROLE_REL

使用PUT 更新用户及组的关系，将使用提交的报文覆盖掉现有的配置， PUT 一个 roles 的空数组，对应group的记录将被删除

curl -X PUT -d '{"roles": [2, 12]}'  localhost:8081/api_gateway/identities/groups/2/roles

使用 GET 查询当前的配置，目前返回结果只包含 role id 的列表

 curl localhost:8081/api_gateway/identities/groups/2/roles
{"data":{"roles":[2,12]},"code":0,"msg":"success"}

表 API_GROUP

使用POST 方法添加role，role添加后的id 会返回给调用方

注意：添加用户时用的domain 是需要使用 api group的 domain,这样默认添加的 domain 才会一致，否则需要手动输入user 的domain 信息

 curl  -X POST -d '{"name":"app2", "base_path": "/app2"，"desc": "新增api group2",
  "domain": "app2"}' localhost:8081/api_gateway/entities/api_groups

{"msg":"success","data":{"id":2},"code":0}

使用GET方法查询，支持通过 id 或name 进行查询

curl http://localhost:8081/api_gateway/entities/api_groups/2
{"data":{"desc":"","base_path":"\/app2","id":1,"name":"app2"},"code":0,"msg":"success"}

curl http://localhost:8081/api_gateway/entities/api_groups/name/app2
{"data":{"desc":"","base_path":"\/app2","id":1,"name":"app1"},"code":0,"msg":"success"}

使用PUT方法进行修改，需要通过id 进行修改。

 curl  -X PUT -d '{"name":"app2", "base_path": "/newapp2", "desc":"app1 group"}' http://localhost:8081/api_gateway/entities/api_groups/2
{"code":0,"msg":"success"}

使用 DELETE 方法进行删除

curl -X DELETE http://localhost:8081/api_gateway/entities/api_groups/2
{"msg":"success","code":0}

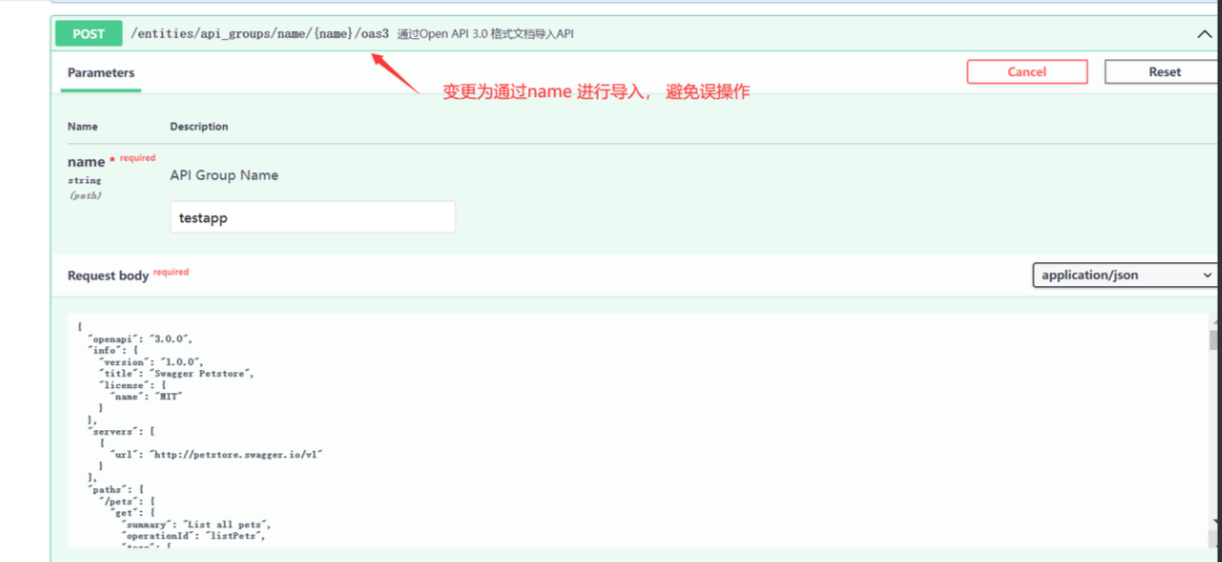

POST 一个 oapi3.0 json 导入 api

 curl -X POST -d @petstore.json localhost:8081/api_gateway/entities/api_groups/2/oas3
{"code":0,"msg":"success"}

GET 获取API Group下的所有API

 curl localhost:8081/api_gateway/entities/api_groups/2/apis

{"msg":"success","data":[{"sign_validation":0,"id":10,"desc":"List all pets","path":"\/pets","method":"get","name":"Swagger Petstore","group_id":2,"param_mode":0},{"sign_validation":0,"id":11,"desc":"Create a pet","path":"\/pets","method":"post","name":"Swagger Petstore","group_id":2,"param_mode":0},{"sign_validation":0,"id":12,"desc":"Info for a specific pet","path":"\/pets\/{petId}","method":"get","name":"Swagger Petstore","group_id":2,"param_mode":0}],"code":0}

表 API_GRANT_RBAC

通过 role_id 更新对应role 授权的 API 列表

 curl -X PUT -d '{"apis": [1, 2]}' localhost:8081/api_gateway/identities/roles/1/apis

通过 role_id 查询对应role 授权的 API 列表

curl localhost:8081/api_gateway/identities/roles/1/apis
{"code":0,"msg":"success","data":{"apis":[1,2]}}

添加应用

首先使用 upload 功能上传应用压缩包。

使用 /api_gateway/deploy/app 部署上传的应用，该api 中会调用njet 的动态添加location

curl -X 'POST'   'http://localhost:8081/api_gateway/deploy/app' -d '{ "uploaded_file": "5a655cd81aa8b6d477d8aeebd8f76ba7.dat",  "app_type": "lua",   "base_path": "/app2"}'

添加的应用，如果需要使用API 网关提供的 rbac 校验功能，可以用动态lua 配置添加 location 的校验规则

curl --location --request PUT 'http://localhost:8081/api/v1/config/http_lua' \
--header 'Content-Type: application/json' \
--data '{
  "servers": [
    {
      "listens": [
        "0.0.0.0:8080"
      ],
      "serverNames": [
        ""
      ],
      "locations": [
        {
          "location": "/app2",
          "lua": {
               "access_by":"local ac=require(\"api_gateway.access.control\")\nlocal access=ac.new(\"/app2\") \naccess:check()\n"
          }
        }
      ]
    }
  ]
}'

使用DELETE 删除应用

 curl -X 'DELETE'   'http://localhost:8081/api_gateway/deploy/app' -d '{ "base_path": "/app2"}'

注册后端服务

njet 主配置可以参考 conf/njet.conf.api_gateway.example,

使用 POST 注册一个后端服务，注册服务时，将自动添加location 及upstream

 curl -X 'POST' \
    'http://localhost:8081/api_gateway/conf/service' \
    -d '{
      "base_path": "/servapp1",
       "upstream":  {
          "endpoints":[{"address":"127.0.0.1","port":"1234"}]
        }
 }'

{"code":0,"msg":"success"}

使用PUT 更新已有的后端服务的 upstream

 curl -X 'PUT' \
    'http://localhost:8081/api_gateway/conf/service' \
    -d '{
      "base_path": "/servapp1",
       "upstream":  {
          "endpoints":[{"address":"127.0.0.1","port":"2345"}]，
          "healthCheck":{"interval":10,"path":"/health", "fails":5, "passes":5, "statusMatch":"200"}
        }
 }'

使用DELETE 删除一个后端服务

curl -X 'DELETE' \
  'http://localhost:8081/api_gateway/conf/service' \
   -d '{
   "base_path": "/servapp1"
}'

/conf/upstreams 查询配置的upstreams

curl http://localhost:8081/api_gateway/conf/upstreams
{"msg":"success","data":[{"load-balance":"round_robin","name":"up_servapp1","endpoints":[{"port":"1234","address":"127.0.0.1"}]}],"code":0}

授权校验

使用非法的 auth token

curl -H "Authorization: bearer aa" localhost:8080/app2/pets -v
*   Trying ::1:8080...
* TCP_NODELAY set
* connect to ::1 port 8080 failed: Connection refused
*   Trying 127.0.0.1:8080...
* TCP_NODELAY set
* Connected to localhost (127.0.0.1) port 8080 (#0)
> GET /app2/pets HTTP/1.1
> Host: localhost:8080
> User-Agent: curl/7.68.0
> Accept: */*
> Authorization: bearer aa
>
* Mark bundle as not supporting multiuse
< HTTP/1.1 401 Unauthorized
< Server: njet/2.1.0
< Date: Thu, 25 Apr 2024 06:45:22 GMT
< Content-Type: text/plain
< Transfer-Encoding: chunked
< Connection: keep-alive
<
{"code":20,"msg":"token is not valid"}
* Connection #0 to host localhost left intact

对应的Role 无权限访问

curl -H "Authorization: bearer 939cd52f-17aa-4657-ad17-e938a153b406" localhost:8080/app2/pets  -v
*   Trying ::1:8080...
* TCP_NODELAY set
* connect to ::1 port 8080 failed: Connection refused
*   Trying 127.0.0.1:8080...
* TCP_NODELAY set
* Connected to localhost (127.0.0.1) port 8080 (#0)
> GET /app2/pets HTTP/1.1
> Host: localhost:8080
> User-Agent: curl/7.68.0
> Accept: */*
> Authorization: bearer 939cd52f-17aa-4657-ad17-e938a153b406
>
* Mark bundle as not supporting multiuse
< HTTP/1.1 403 Forbidden
< Server: njet/2.1.0
< Date: Thu, 25 Apr 2024 07:31:14 GMT
< Content-Type: text/plain
< Transfer-Encoding: chunked
< Connection: keep-alive
<
{"code":30,"msg":"API access is not allowed"}
* Connection #0 to host localhost left intact

使用正确的 token，且role 有权限

 curl -X POST -d '{"login_data":{"username": "aa", "password": "aa"}}' localhost:8081/api_gateway/auth/login
{"code":0,"msg":"success","token":"83584d03-86c8-45e9-9f22-347c3c3bd278"}

curl -H "Authorization: bearer 83584d03-86c8-45e9-9f22-347c3c3bd278" localhost:8080/app2/pets
app2 get pets

集群内token 同步

156上：

 curl -X 'POST'   'localhost:8081/api_gateway/auth/login'   -H 'accept: application/json'   -H 'Content-Type: application/json'   -d '{
  "api_group_name": "app",
  "login_type": "internal",
  "login_data": {
    "username": "agw_admin",
    "password": "Xptykm;1qrdv"
  }
}'
{"code":0,"token":"02f4b081-8efa-4087-87c1-1339cdecf3a0","msg":"success"}

使用156 上login 登录获取的token在145 上使用：

curl -X 'GET' \
  'http://192.168.40.145:8081/api_gateway/identities/users/2' \
  -H 'accept: application/json' \
  -H 'Authorization: Bearer 02f4b081-8efa-4087-87c1-1339cdecf3a0'

  {
  "code": 0,
  "msg": "success",
  "data": {
    "mobile": "12345674539",
    "name": "njet154@app154",
    "email": "limins154@tmlake.com",
    "id": 2
  }
}

/conf/sysconfig 接口

 #获取token
 curl -X 'POST'   'localhost:8812/api_gateway/auth/login'   -H 'accept: application/json'   -H 'Content-Type: application/json'   -d '{
  "api_group_name": "app",
  "login_type": "internal",
  "login_data": {
    "username": "agw_admin",
    "password": "Xptykm;1qrdv"
  }
}'
{"msg":"success","token":"c35157d0-cca1-4e00-b11f-e67d069a2299","code":0}



#修改api gateway 配置
curl -X 'POST' \
  'localhost:8812/api_gateway/conf/sysconfig' \
  -H 'accept: application/json' \
  -H 'Authorization: Bearer c35157d0-cca1-4e00-b11f-e67d069a2299' \
  -H 'Content-Type: application/json' \
  -d '[
  {
    "config_key": "ctrl_api_base",
    "config_value": "http://127.0.0.1:8812/api/v1",
    "config_type": "string"
  }
]'
{
  "msg": "success",
  "code": 0,
  "data": ""
}

#查询api gateway 配置
 curl -X 'GET'   'localhost:8812/api_gateway/conf/sysconfig/ctrl_api_base'   -H 'accept: application/json'   -H 'Authorization: Bearer c35157d0-cca1-4e00-b11f-e67d069a2299' |jq
  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
100   136    0   136    0     0  36179      0 --:--:-- --:--:-- --:--:-- 45333
{
  "msg": "success",
  "code": 0,
  "data": [
    {
      "config_key": "ctrl_api_base",
      "config_type": "string",
      "config_value": "http://127.0.0.1:8081/api/v1"
    }
  ]
}

API Group 添加用户id 的校验

导入oas3格式文档改为使用name

API Group 中包含 domain

添加含domain 的api group

curl -X 'POST' \
  'http://192.168.40.158:8081/api_gateway/entities/api_groups' \
  -H 'accept: application/json' \
  -H 'Authorization: Bearer 316a2a23-b576-452a-b25d-c3b32f14c45d' \
  -H 'Content-Type: application/json' \
  -d '{
  "name": "api_group2",
  "base_path": "/app2",
  "desc": "新增api group2",
  "domain": "app2"
}'

{
  "msg": "success",
  "code": 0,
  "data": {
    "id": 5
  }
}

通过userid及密码方式进行校验：

curl 'localhost:8080/app2/pet/1?userId=njet2&pwd=123456'
in /app2 main.lua

 curl 'localhost:8080/app2/pet/1?userId=njet3&pwd=123456'
{"msg":"can't get user using parameters: njet3@app2 / 123456","code":30}

curl 'localhost:8080/app2/pet/1?userId=njet2@app2&pwd=123456'
in /app2 main.lua

api 网关功能

1.功能描述

2.依赖模块

3.配置样例

4.调用样例

使用命令行工具重置agw_admin初始密码

Login API

表API_USER

表API_USER_GROUP

表API_USER_GROUP_REL

表 API_ROLE

表 API_USER_GROUP_ROLE_REL

表 API_GROUP

表 API_GRANT_RBAC

添加应用

注册后端服务

授权校验

集群内token 同步

/conf/sysconfig 接口

API Group 添加用户id 的校验

导入oas3格式文档改为使用name

API Group 中包含 domain
